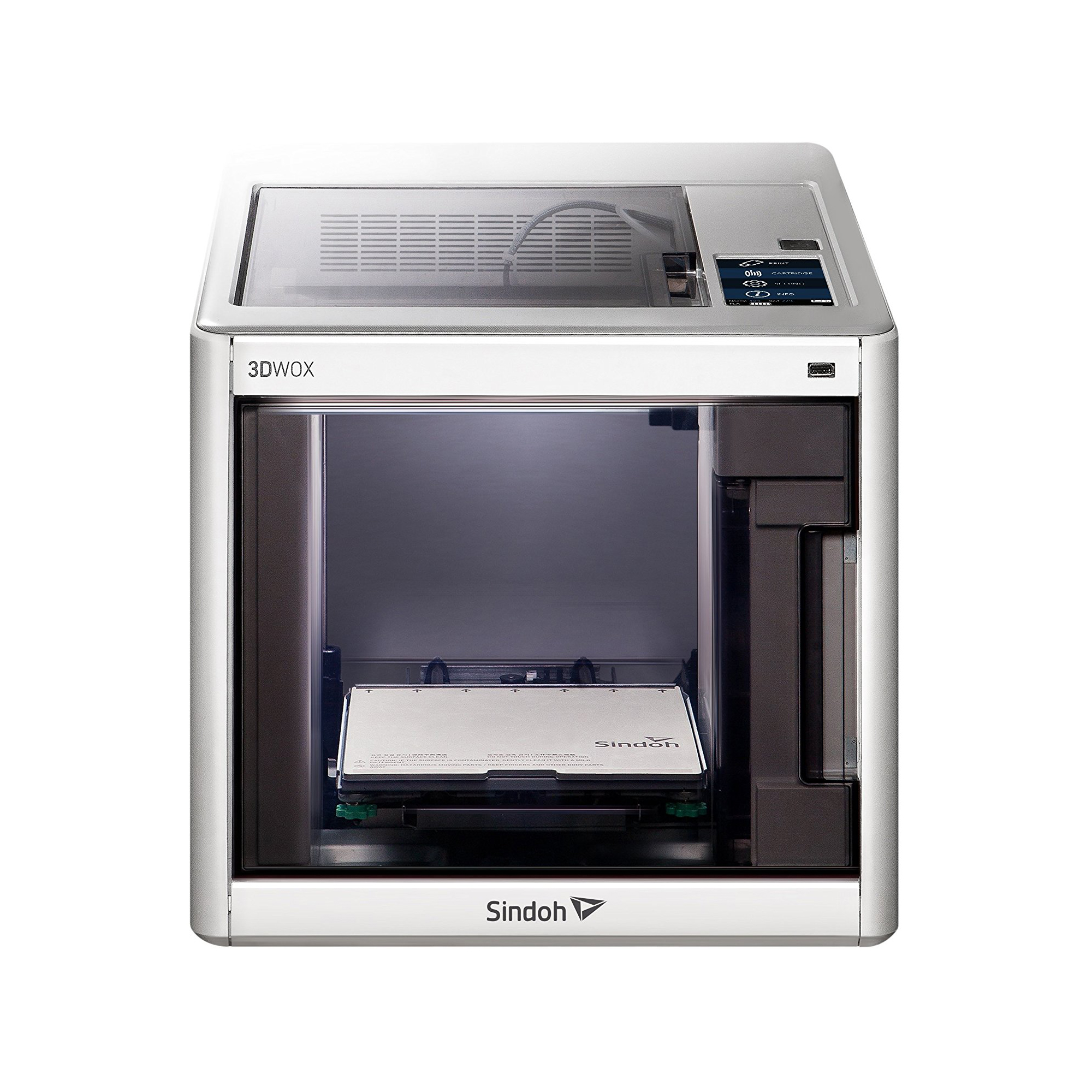

Sindoh 3DWOX DP201

Sindoh 3DWOX DP201 specifications

• Technology: FFF FDM
• Type: Material extrusion
• Year: 2017
• Assembly: Fully-assembled
• Mechanical arrangement: Cartesian-X-Head
• Manufacturer: Sindoh
• Manufacturer country: South Korea
• Certifications: CE, UL

Materials

• Filameter diameter: 1.75 mm
• Compatible with 3rd party filaments?No a closed material system
• Printable material(s): PLA

Build volume

• 3D print size: Medium
• Print size millimeters (xyz): 200 x 200 x 189 mm
• Print size inches (xyz): 8.3 x 7.9 x 7.4 inches

3D printer and printing properties

• Layer height: 20 – 200 Microns
• Feeder system: Direct
• Extruder type: Single
• Nozzle size: 0.4 mm
• Max print speed: 80 mm/s
• Frame: Polyethylene / aluminum Dibond
• Closed print chamber: Yes, fully enclosed
• Temperature controlled print chamber: No
• Bed leveling: Manual (assisted)
• Print bed details: Non heated, removable and flexible
• Display: LCD touch screen
• Firmware: Closed-source
• Connectivity: Ethernet, USB cable, Wi-Fi
• Built in camera for monitoring: Yes
• Print recovery: Yes
• Filament runout detection: Yes

Requirements

• Slicing: 3DWOX, Cura
• Operating system(s): Mac OS X
• Operating system(s): Windows

Dimensions and weight

• Outer dimensions inches (xyz): 16.6 x 16.9 x 17.3 inches
• Outer dimensions millimeters (xyz): 421 x 433 x 443 mm
• Weight lb: 46 pounds
