Miniaturizing technology involves more than mere size reduction; it’s about preserving core functions while adapting to new dimensions. This miniature three-speed manual transmission by YouTuber “PolyProject3D” highlights this ethos.
While superficially resembling a conventional manual transmission, the miniature marvel operates more akin to an automatic system, employing advanced planetary gearsets and precision brake bands to facilitate seamless gear changes.
However, what truly sets this transmission apart is its design tailored explicitly for 3D printing technology.

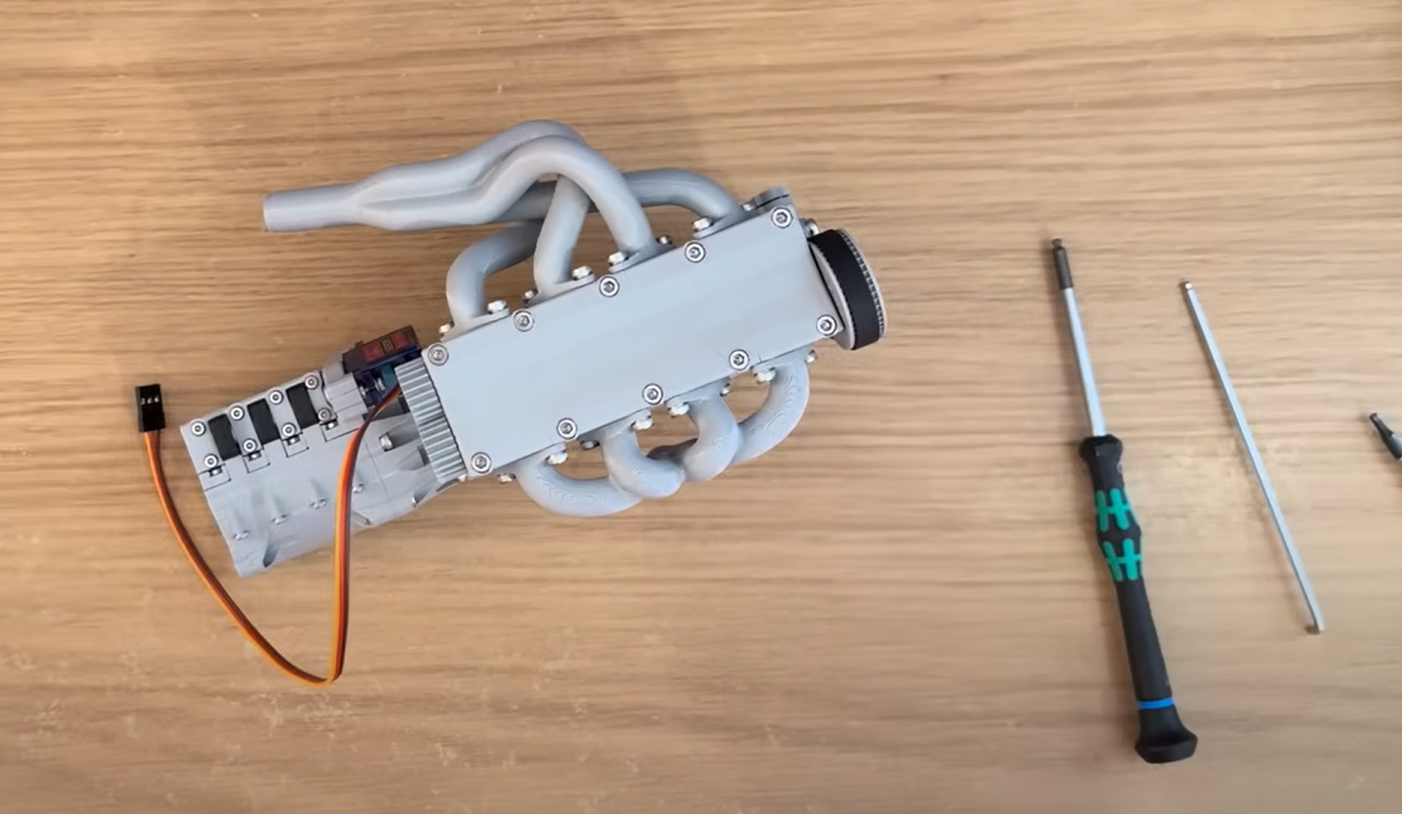

Designed to complement PolyProject3D’s miniature four-cylinder engine, this transmission boasts meticulous engineering. At the heart of the transmission lies in its servo-operated camshaft, which orchestrates the precise engagement of gear ratios through the manipulation of shift bands. Each gear change is a testament to the intricate interplay between mechanical precision and technological innovation.
Source: motor1.com
